Single Phase Submersible Panel
The PCS11T is a single phase submersible panel with a wide range of applications. In addition to conventional water supply and drainage, it can also be used for time-period control, real-time control, and PT temperature control. Equipped with a high-capacity imported chip, the PCS11T provides reliable and accurate performance. If customers have custom requirements, we also offer ODM design services to meet their specific needs.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
With a multitude of uses, the PCS11T is a single phase submersible panel. It can be utilized for time-period control, real-time control, and PT temperature control in addition to traditional water supply and drainage.
With its large capacity imported chip, the PCS11T offers accurate and dependable performance. We also provide ODM design services to customers with unique requirements so that we may suit their needs.
Single phase submersible panels are a popular option for many industries because of their many features and ease of operation. It can be incorporated into any type of water pumping system to help cut expenses, conserve energy, and increase efficiency.
The PCS11T is a dependable and affordable solution for all water pumping control demands thanks to its cutting-edge technology.
description
PCS11 single-phase submersible panel Operating power range: 0.37–2.2 kW.
Relay max 30A is used as drive.

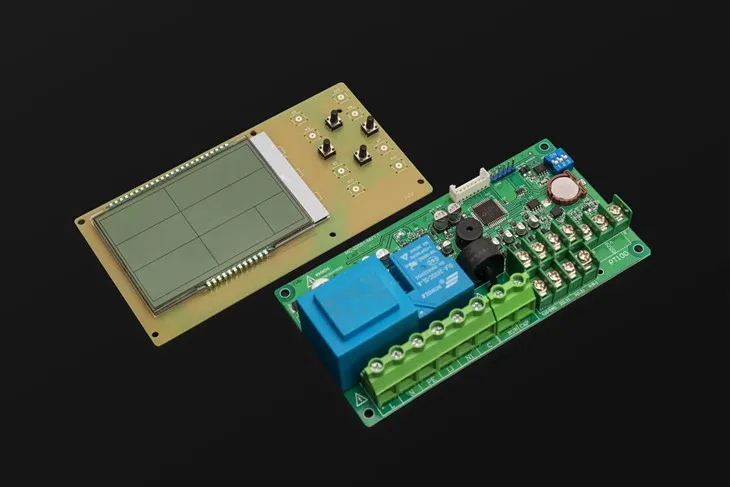

Attached to the PCB board are the level terminal, input, and output terminals.
Box fastened with available screw and clamp.
The long-lasting, precise 103E CTs have an accuracy of 0.1 A.
Make room for the start/run capacitor and provide a clamp to secure it.
|
Control characteristic
|
Double liquid level control |
|
Pressure control |
|
|
Timer control |
|
|
PT 100 Temperature control |
|
|
Output power |
0.37-2.2KW |
|
Voltage input: |
220-240v |
|
Control method |
Auto / Manual/Semi-Auto |
|
Trip response time of overload |
3s-120s |
|
Trip response time of dry run |
6 sec |
|
Recovery time of over load |
30 min |
|
Recovery time of under / over voltage |
5 min |
|
Recovery time of dry run |
30 min |
|
Trip voltage of over voltage |
175V |
|
Trip voltage of under voltage |
253V |
