Subersible Three Phase Pump Control Box
Our company specializes in manufacturing submersible three phase pump control box, and we have independently developed a control panel called PLC-1, which is specifically designed for high-power cabinets.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

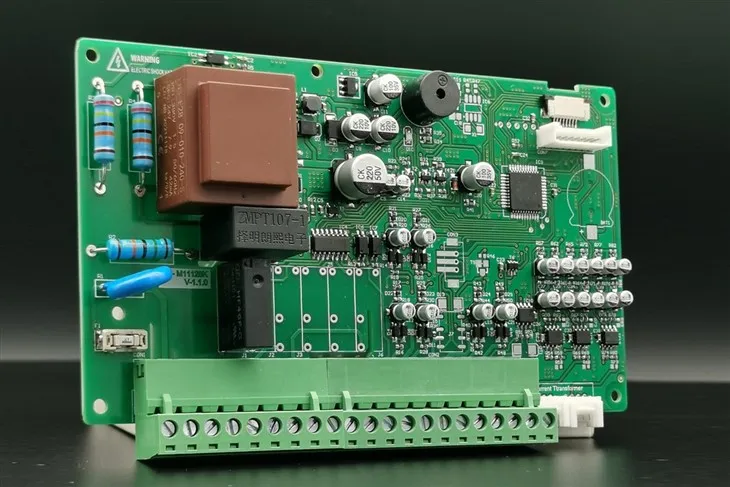

Our company specializes in manufacturing submersible three phase pump control box, and we have independently developed a control panel called PLC-1, which is specifically designed for high-power cabinets. It has a small size, compact design, and wide range of applications, with the ability to control multiple pumps at once.
PLC-1 has comprehensive protection features, which allow it to automatically adjust the pump's normal working status based on the input current, providing protection against dry running and overload current. It can receive signals from both digital and analog probes, enabling automatic start-stop control of the pump.
The built-in passive dry contact can output fault signals and start-stop signals for the pump.
Furthermore, PLC-1 is equipped with a 485 interface, which enables remote control. The panel's advanced technology and reliable performance make it an ideal choice for various water pump control applications. At our company, we are committed to providing our customers with high-quality products and the best possible service.
Input Voltgae & Output Power
Single phase, AC110V
Single phase, AC220-240V
Three phase, AC380-460V
Three phase, AC220-240V
Output Power
0.1-5.5kw (single phase, AC110V)
0.05-5.5kw (single phase, AC220-240V)
0.37-5.5kw (three phase, AC220-240V)
0.37-260kw (three phase, AC380-460V
Application
- Applied for water transfer from low tank to upper tank by liquid probe or float switch
- Applied for booster by pressure switch &pressure tank.
- Applied for sewage lifting by liquid probe or float switch
- Applied for drainage pump with piggy-back float switch
- Applied for water transfer from low tank to upper tank by level transmitter
- Applied for booster by pressure transmitter
- Applied for sewage lifting by level transmitter
Other Features
- All protection function can be enable or disable independently
- Pump last five fault record displaying
- Pump accumulative running time displaying
- Key press button lock and unlock (settable)
- Dynamic LCD displays pump running information
- Memory Function when power off & power recovery
- A/B pump operation enable or disable function
- Pump start time delay (Time settable)
- Pump stop time delay (Time settable)
- Long signal transmission distance (1500meters max)
- RS485 communication port
- Present DC24V audible & visual alarm (model PCH 32 Plus only)
- Parameter menu available to maintain the pump and controller in best working condition
- A friendly human-machine interface is provided by LCD module
- All electronic components with good stability, product quality is stable and reliable
