Control Panel Single Phase Submersible Pump

Shanghai JIT Smart Technology Co., Ltd. is one of the leading manufacturers and suppliers of control panel single phase submersible pump in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to buy advanced control panel single phase submersible pump made in China here from our factory.

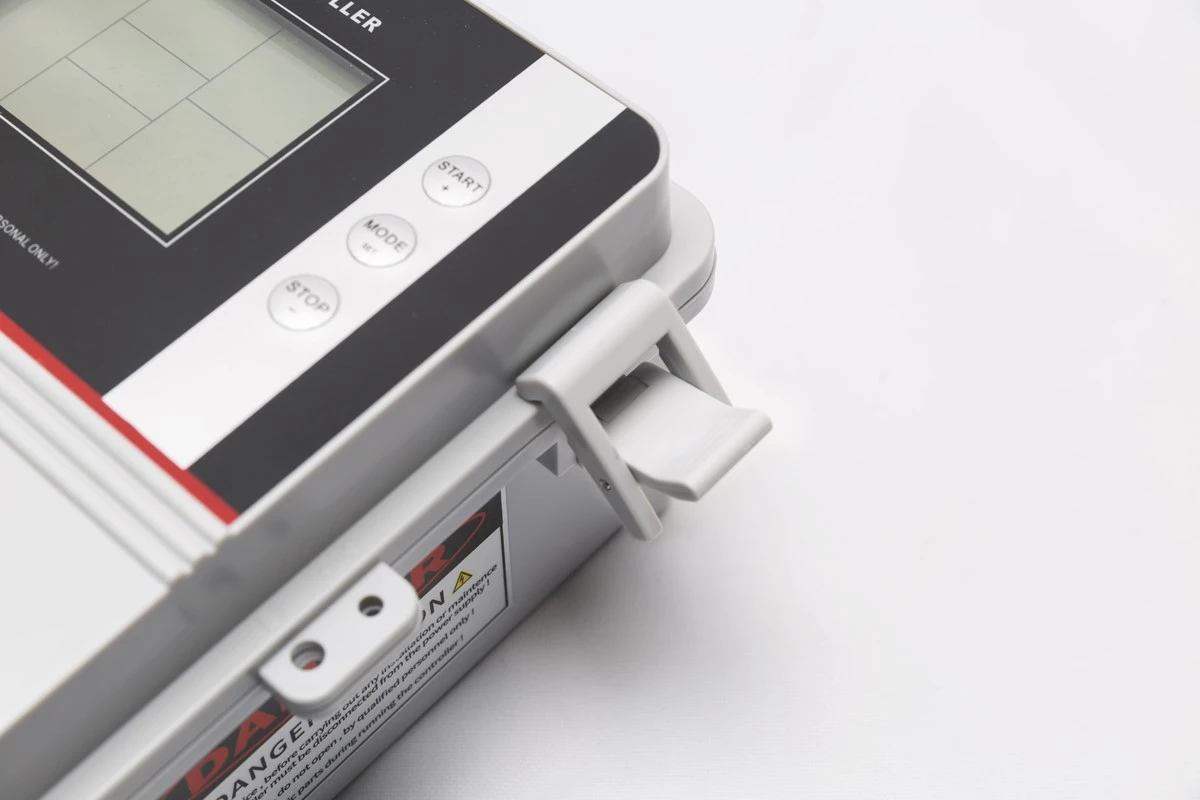

PCS11 it is a IP65 control panel single phase submersible pump

Single phase pump control panel PCS11 It is designed to control and protect simplex pump .

Its application including below:

Water transfer from up and down water tanks.

Booster water for borehole pump .

Drainage from sump.

Timer control ,setting start timer and stop timer .

Temperature control ,setting start temp and stop temp .

When in Manual ,by setting timer it can be stop automatically .

Single phase pump control panel PCS11 Working range from 0.37-2.2kw .

It is relay max 30A as drive .

Level terminal and input and output terminal in attached with PCB board.

Box fixed with clamp and screw ,both available .

The accurate 103E CTs ,can make accuracy to 0.1 A with long life time .

Give space for start/run capacitor ,supply capacitor clamp for fix.

1. Automatic and hand operation.
2. Push ONE button parameter calibration to get proper running amp data to match pump running .
3. visual LCD displaying pump running status and data input .
4. Accurate /in time protection on water pump.
5. Application shift easily by dip switch .
6. Parameter open and setting easily .
7. Software can be updated as per customer customized .
8. It is indoor and outdoor .
9. High precision low noise operational amplifier to make voltage/amp displaying reliable .
