Single Phase Control Box

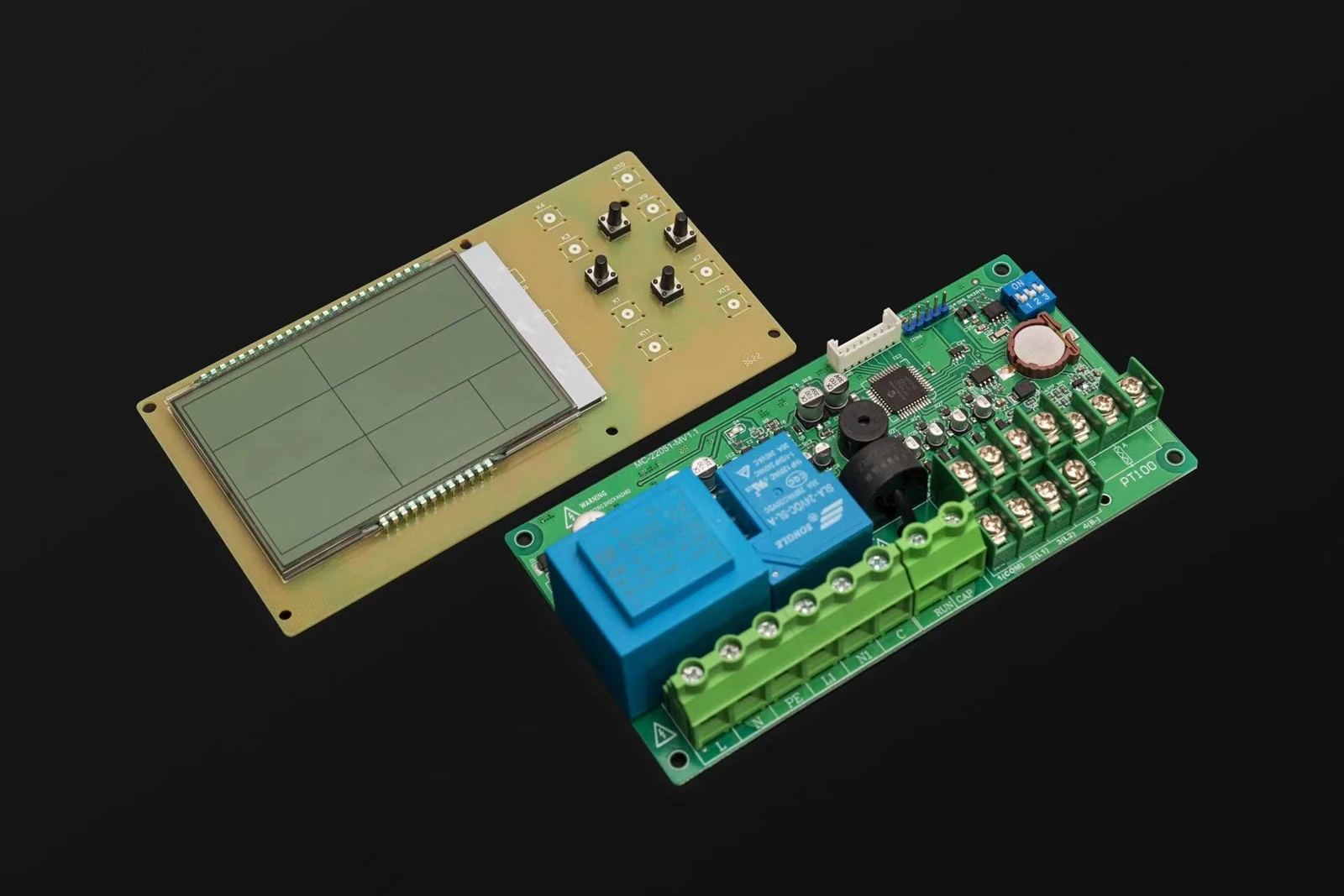

Description PCS11T single phase control box a versatile single-phase multifunctional controller with input voltage of 220-240V The PCS11T is a single-phase multifunctional controller that combines the functions of liquid level, pressure, temperature and time control. It is a widely used controller that can be used for a range of applications. The controller is designed to be easily assembled by the customer, with PCB boards supplied by us.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Shanghai JIT Smart Technology Co., Ltd. is one of the leading manufacturers and suppliers of single phase control box in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to buy advanced single phase control box made in China here from our factory.
PCS11T single phase control box
a versatile single-phase multifunctional controller with input voltage of 220-240V
The PCS11T is a single-phase multifunctional controller that combines the functions of liquid level, pressure, temperature and time control. It is a widely used controller that can be used for a range of applications. The controller is designed to be easily assembled by the customer, with PCB boards supplied by us.
Available in a compact design, the PCS11T is easy to install and operate. It has an input voltage of between 220-240V, making it ideal for use in a wide range of industries. Whether you need to control the temperature of water pipe, maintain a certain level of liquid in a tank or set the pressure in water pipe, the PCS11T is the perfect solution.
One of the unique features of the PCS11T is its advanced timing chip, which replaces traditional timers and helps to significantly reduce costs. With the PCS11T, you can control your water pump while keeping an eye on the time.
At our company, we pride ourselves on offering high-quality components and reliable service. We believe that our customers will appreciate the versatility and cost-effectiveness of the PCS11T, which is why we offer this controller as an option for those who need a reliable and easy-to-assemble control solution.
features
1.One button parameter calibration .
2.Button locked function .
3.LCD displaying water pump running data and status.
4.Parameter setting easily .
5.Manual/Auto/semi-auto
6.ODM/OEM
7.Pump accumulated running time checking
8.Pump last five faults checking .
9.Over voltage/under voltage/overload/pump stalled/dry running

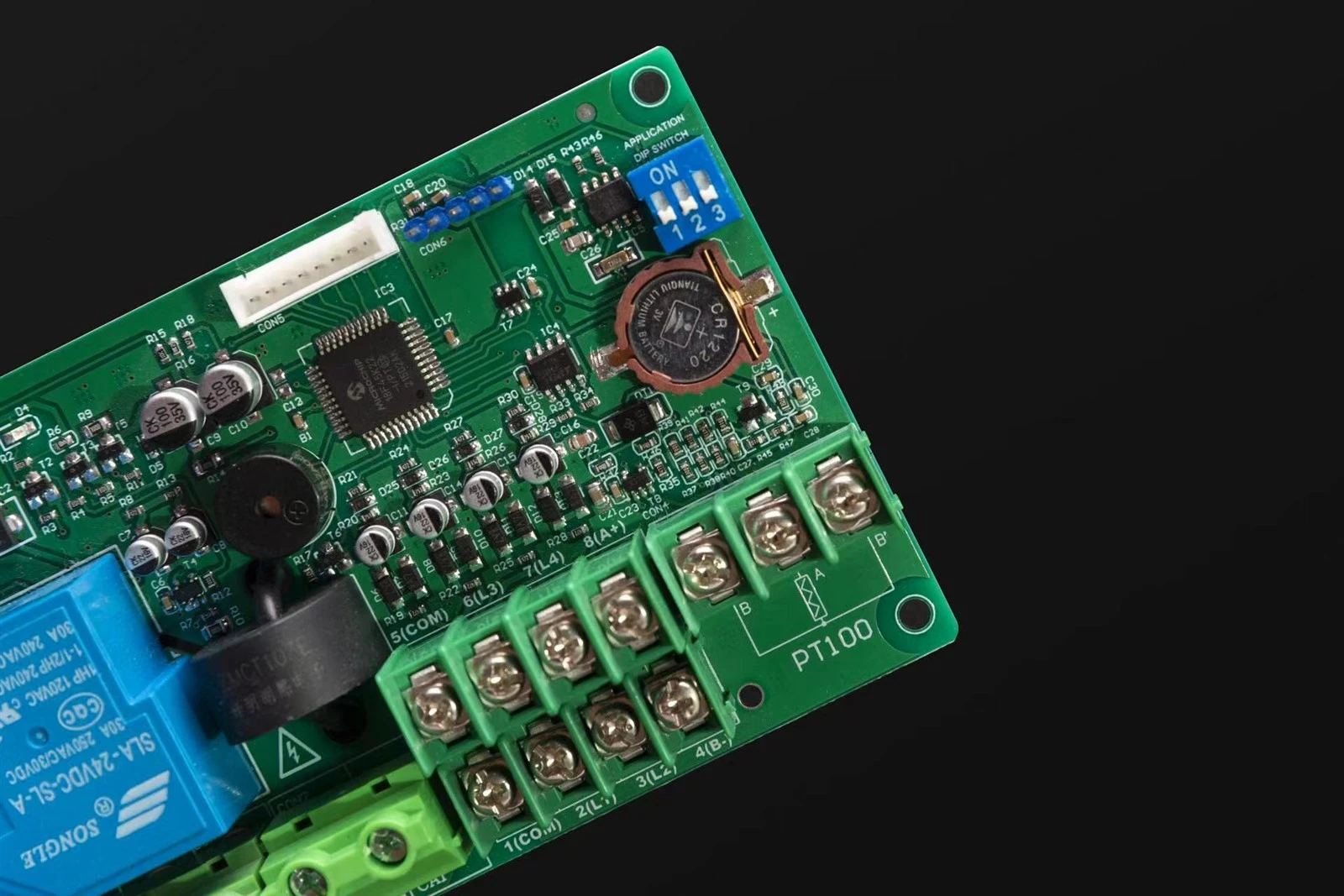

10.The PCB board is equipped with special power transformer specially designed for areas with unstable start-up voltage, which adopts high-silicon steel sheet and goes through filling process. Its working voltage range is wide, the lowest can reach 160V, and the highest can reach 300V, and it can work for a long time without burning.After sales service it become easy .
