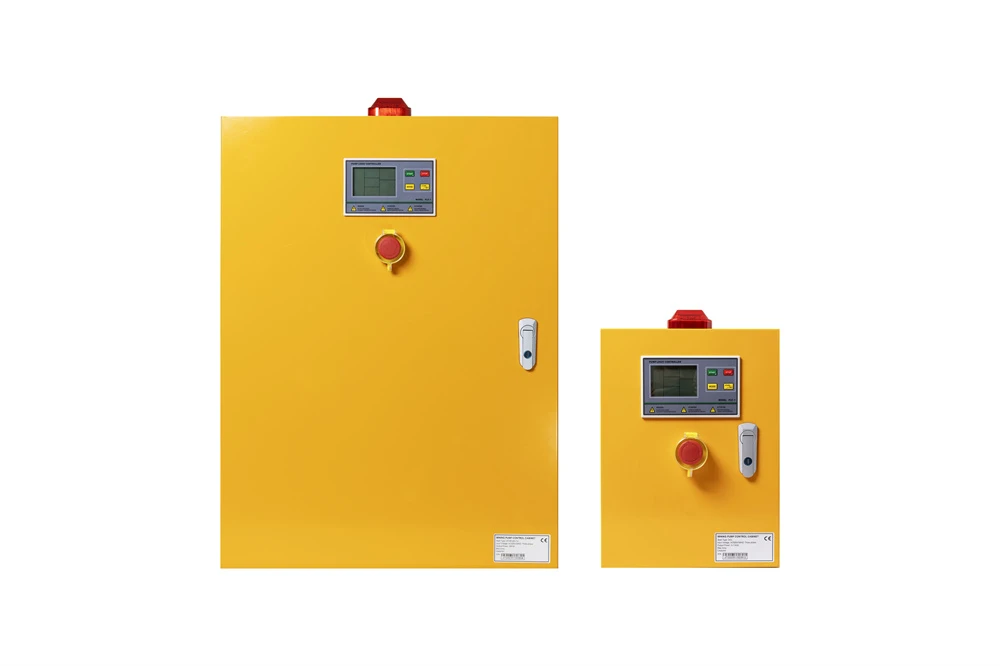

Duplex Digital Pump Controller
Brand: OEM
Manufacturer Model no:
Type:Duplex Alternating Control Panel
Rated Voltage:120/208/240V/380V/415V AC
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Shanghai JIT Smart Technology Co., Ltd. is one of the leading manufacturers and suppliers of duplex digital pump controller in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to buy advanced duplex digital pump controller made in China here from our factory.
company profile
JIT SMART is solely focused on creating, developing, producing, and marketing pump motor protectors and control panels for smart pumps. With over 20 years of expertise in the pump controller business, we are well-versed in the needs of users and pump manufacturers and can offer comprehensive water pump control and protection solutions.
We are a young company compared to the history of water pump development, but we have the drive and inventiveness to offer our clients expert water pump control and protection solutions. Our experience is advanced because we have developed, manufactured, and sold smart pump controllers for over 20 years.
evolutionary chronicle
Having been in the pump controller business for more than 20 years, we are able to integrate the technical needs of numerous pump manufacturers, distributors, and users through good communication. In addition, we can design and customize the production of pump controllers with various functions to meet the control and protection needs of various customers in accordance with these various technical requirements; in the meantime, we can offer our customers affordable and practical solutions for pump control and protection;
overview Manufacturer/Brand: OEM; Model number:
Kind: Dual-Switching Control Panel
Rated Voltage: 208, 240, 380, and 415 volts AC
Amps range from 9 to 32 A
Pump Type Compatibility: Borehole, booster, and sump
Two pumps are under control.
Location: Indoor/Outdoor; Type of Enclosure: IP65; Dimensions of Enclosure: 342*292*119 mm
Protection function
include pump stalling, dry running, overflow, overload, and under/overvoltage protection.
Three phase imbalanced protection, open phase protection, and phase reversal protection.Protection against water leaks and overheating.
Function of control
.One by one, A and B pumps alternate in operation.
If the water level rises, A and B pumps will operate simultaneously.
Pump A can automatically switch to Pump B in the event of a malfunction.
|
Model |
PCH32 plus |
|
Electrical Configuration |
duplex alternating pump controller |
|
Input Voltage & Output power |
Single phase, AC220-240V |
|
Output power |
0.37-5.5kw (three phase, AC220-240V) |
|
Start type |
DOL |
|
Qty of controlled pump |
Duplex pump |
|
Main Protection Function |
|
|
Over load protection by ampere |
Yes |
|
Pump motor stalled |
Yes |
|
Dry run with sensor free |
Yes |
|
Under/Over voltage |
Yes |
|
Open phase |
Yes |
|
Three phase unbalance |
Yes |
|
Phase reversal |
Yes |
|
Repeat start |
Yes |
|
Pump leakage |
Yes |
|
Over temperature |
Yes |
|
Other Function |
|
|
Pump last five faults record displaying |
Yes |
|
Pump accumulative running time displaying |
Yes |
|
RS485 port |
Yes |
|
Pump shaft anti-rust (sewage application) |
Yes |
|
Application |
|
|
Water transfer by float switch/liquid sensor |
Yes |
|
Pressure boosting by pressure switch |
Yes |
|
Sewage by float switch/liquid sensor |
Yes |
|
Sewage pump with piggy back float switch |
Yes |
|
Pressure boosting by 4-20mA pressure transmitter |
Yes |
|
Sewage by by 4-20mA level transmitter |
Yes |
|
Control mode |
|
|
Manual mode |
Yes |
|
Auto mode |
Yes |
|
Mix mode (one pump in auto mode, another pump in manual mode) |
Yes |
|
Other feature |
|
|
Pump overtime operation alternating |
Yes |
|
Protection function enable & disable setting |
Yes |
|
All recoverable protection function can be set as unrecoverable |
Yes |
other features
Additional characteristics.Memory Function during Power Down and Power Back Up
The PT100 temperature sensor expansion module is an optional function expansion module.
The LCD module offers a user-friendly interface between humans and machines.
Every electronic component is steady and dependable, and the product quality is strong.
White and black are the two available housing colors.
Overflow alert for the lifting and application of sewage.
RS485 protocol for communication.
Space set aside for the installation of a MEMS air pressure transmitter, which can be utilized for a system that lifts sewage.
DC24V visual and audible alert.
There are two dry passive contact points available.
