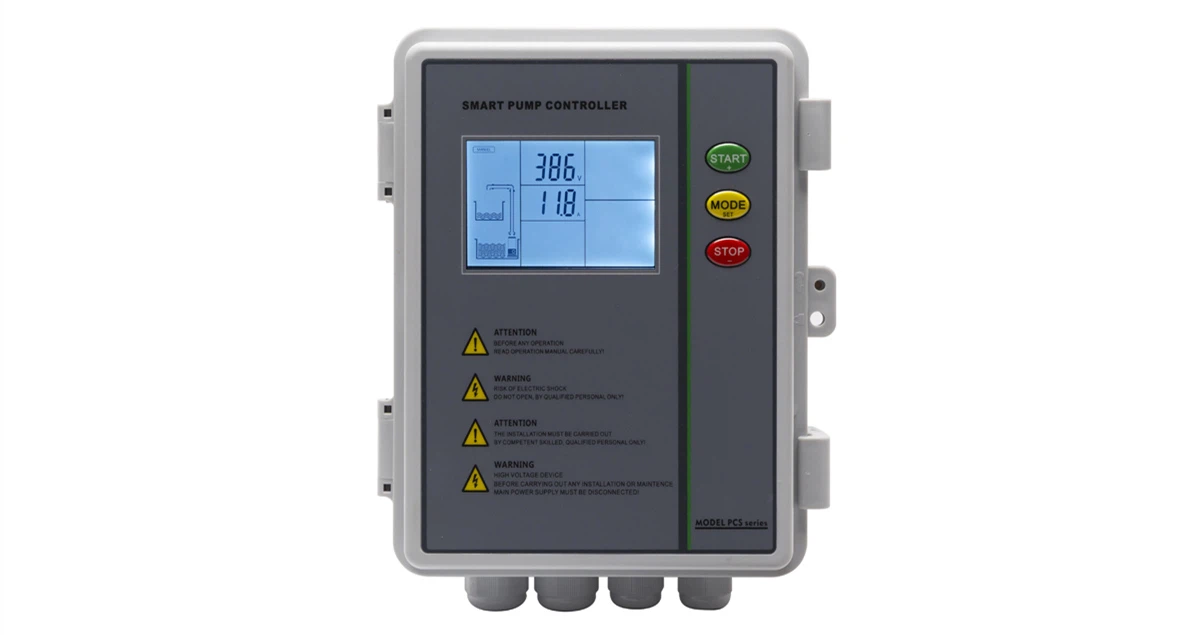

3 Phase Submersible Pump Control Panel

Model PCS31

Output power :0.75-4kw/5.5-7.5kw/11kw/15kw

Control panel applications:

Water supply and drainage

Pressure booster.

Time control functions.

Temperature control through expansion

Work in a wide voltage range from 280-460V.

3 phase submersible pump control panel is equipped with phase-protection function, which is essential for a three-phase water pump.

If the phase is wrong, the motor will reverse, which may cause the motor to fail or no water to be pumped.

This is a feature that many manufacturers desire and other controllers at the same price level cannot offer.

The phase-protection function means that when the pump is connected with the correct phase sequence, if the input power is getting phase reversal due to external factor such as line damage or line replacement during use, it will display phase-protection alarm to remind customers to swap any two of the input wires before restarting.

3 phase submersible pump control panel PCS31 will immediately alarm if the connection is wrong and the two lines need to be reversed before restarting. This is effective for both manual and automatic states. When powered on, phase reversal will be detected and an alarm will be triggered immediately.

1. One button parameter calibration .

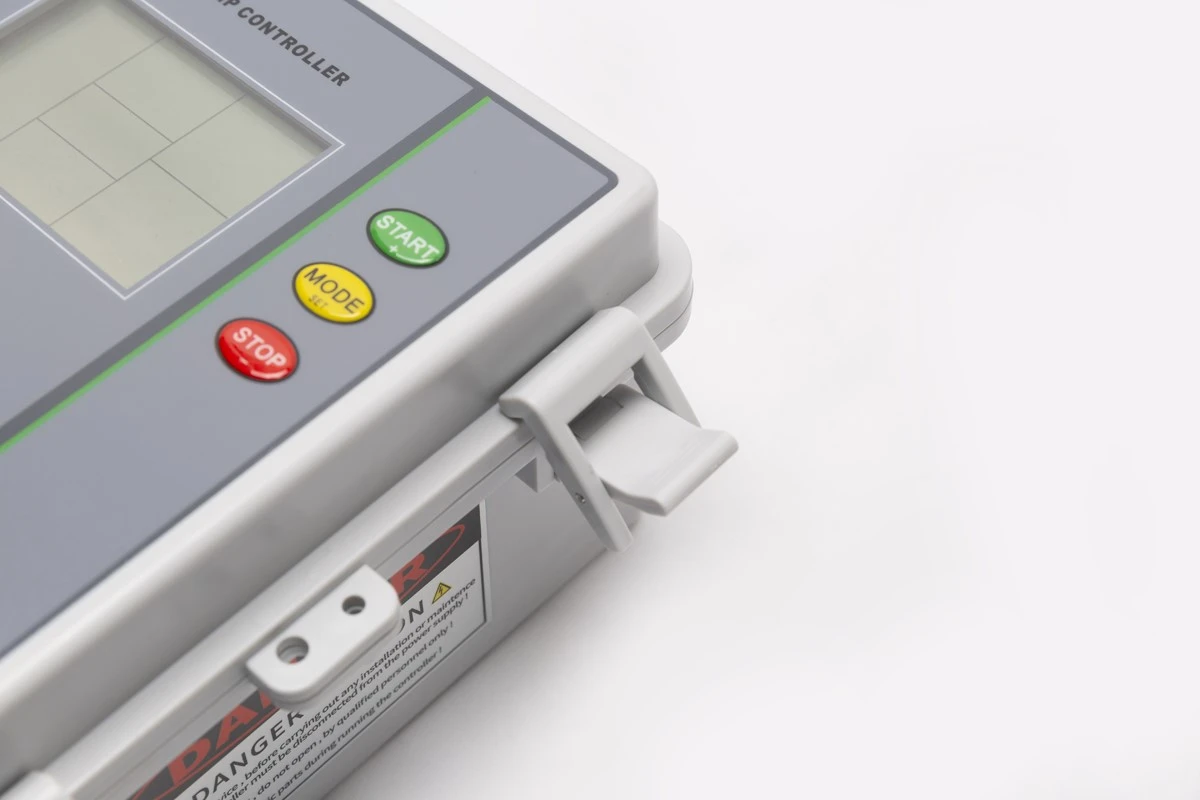

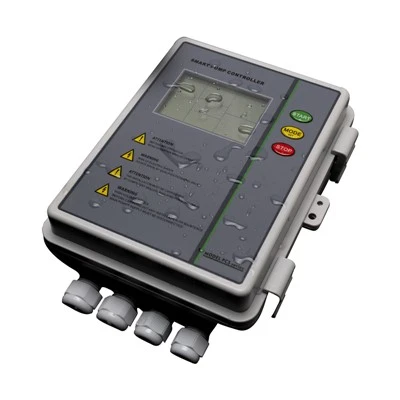

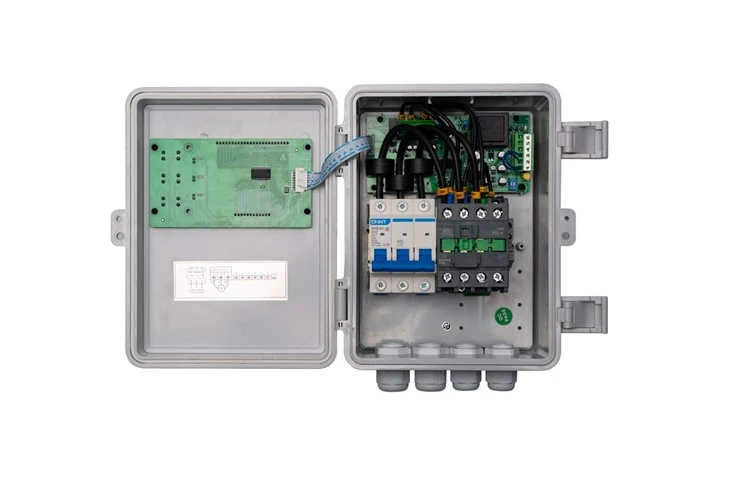

2. IP 65 box ,clamp connection .
3. Button locked function .

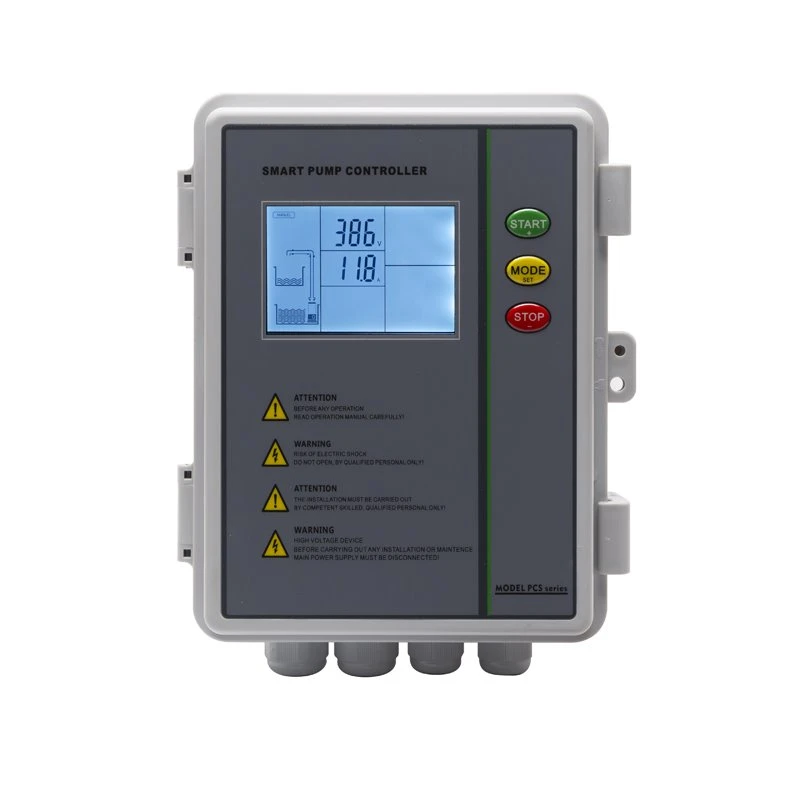

4. LCD displaying water pump running data and status.
5. Parameter setting easily .
6. Manual/Auto/semi-auto
7. ODM/OEM
8. Pump accumulated running time checking
9. Pump last five faults checking .
10. Over voltage/under voltage/overload/pump stalled/dry running/open phase /phase reversal protection.
