Sewage Control Panel

Shanghai JIT Smart Technology Co., Ltd. is one of the leading manufacturers and suppliers of sewage control panel in China. We have world-leading production equipment and strong manufacturing capabilities. Welcome to buy advanced sewage control panel made in China here from our factory.



panel for sewage control

The pump controller is a three-phase duplex pump.

Pumps are used in many different applications, with sewage lifting being one of its specialties.

Operating power range: 0.75–15 kW.

supports 220v–415v worldwide voltage

Deep well pumps, sewage pumps, self-priming pumps, centrifugal pumps, pipeline pumps, and other pumps can all be controlled and protected by this clever, three-phase pump control and protection system, which is easy to use, straightforward, and dependable.







1. Protection: Open phase, Phase reversal, dry running, over/under voltage, overload, and pump stalling.

2. A level probe can convey data over a distance of 200–1000 meters.

3. There are several IP65 housing options available for both indoor and outdoor use.

4. One button parameter calibration; the LCD may flash if it is not calibrated.

5. Accessible OEM/ODM goods and services.

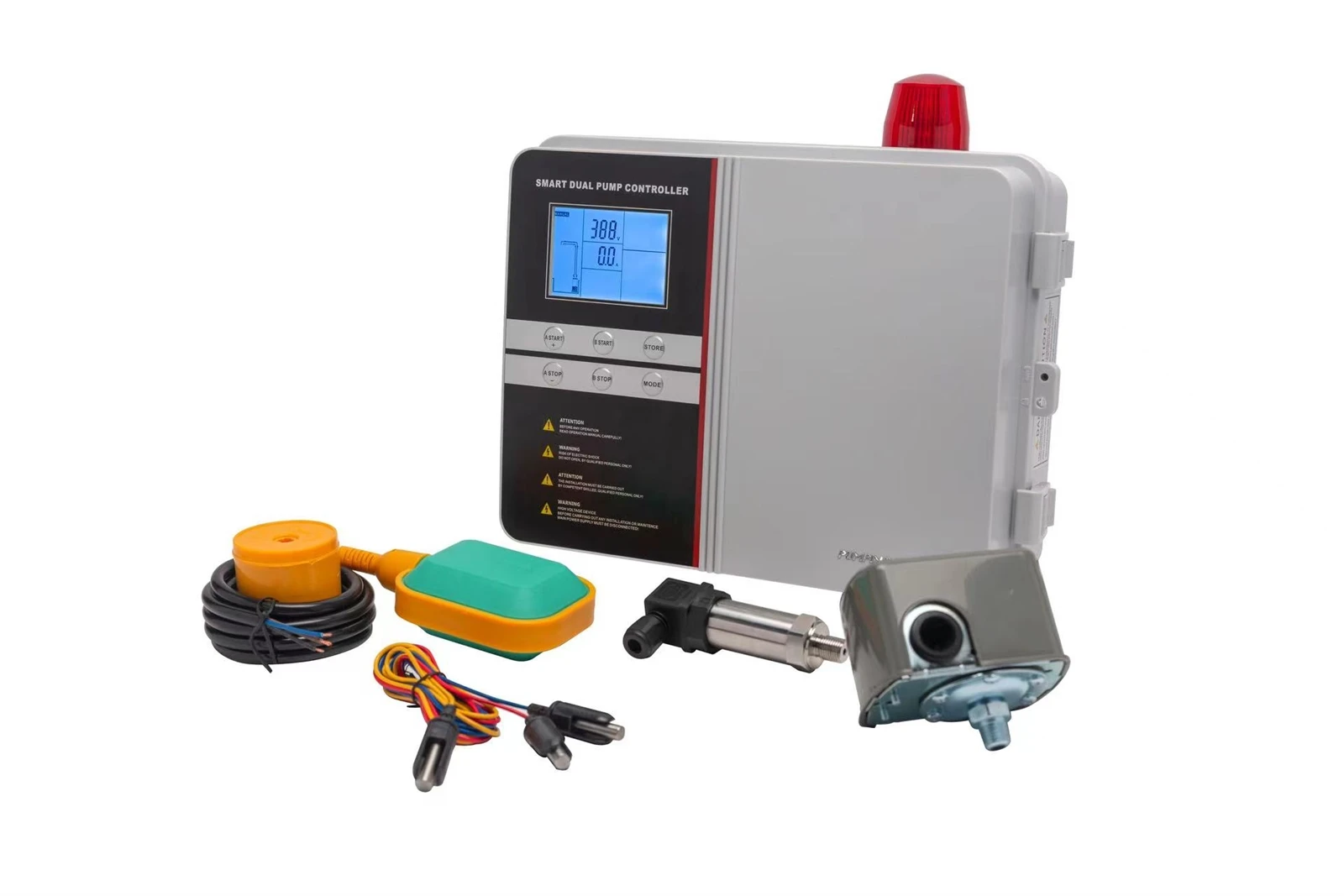

used to transport water via a float switch or liquid probe from the lower tank to the upper tank.

pressure switch and pressure tank were used to apply for the booster.

used a liquid probe or float switch to lift sewage

.Applied for a piggyback float switch drainage pump.

applied for the level transmitter to transport water from the lower tank to the top tank.

Pressure transmitter applied for a booster.

submitted a level transmitter application for sewage lifting.

Application for pure cycle timer control (without any logic control feature) was made.

used to regulate the temperature using a PT100 temperature sensor (an additional PT100 temperature sensor expansion module is needed).





.All protection function can be enable or disable independently

.Pump last five fault record displaying

.Pump accumulative running time displaying

.Key press button lock and unlock (settable)

.Dynamic LCD displays pump running information

.Memory Function when power off & power recovery

.A/B pump operation enable or disable function

.Pump start time delay (Time settable)

.Pump stop time delay (Time settable)

.Long signal transmission distance (1500meters max)

.RS485 communication port

.Present DC24V audible & visual alarm (model PCH 32 Plus only)

.Parameter menu available to maintain the pump and controller in best working condition

.A friendly human-machine interface is provided by LCD module

.All electronic components with good stability, product quality is stable and reliable







. Working temperature: -25℃ -- 55℃

. Working humidity: 20%-90%RH, no condensing

. Degree of protection： IP67

. Mounting type: Wall mounting

.Unit dimension(L * W * H) 342*292*119mm





. Net weight

. Gross weight

. Packing quantity

2.44kg/set (approximate)

2.84kg/set (approximate)

4sets in 1carton box, Carton size: 60x35x33cm
